The low(multiple) order waveplate is designed to give a retardance of several full waves, plus the desired fraction. This result in a single, physically robust component with desired performance. However, even small changed in wavelength or temperature will result in significant changes in the desired fractional retardance. They are less expensive and find use in many applicatios where the increased sensitivities are not an important.




Specifications:

 Material: --------------------------------------------------------- Quartz
Dimension tolerance:----------------------------------------  +0.0, -0.2
Wavefront distortion: ------------------------------------------ l/8@633nm
Retardation tolerance: -----------------------------------------  see below table
Parallelism: -------------------------------------------------- <3arc second(General) , <1 arc second (High Precision)
Surface quality: ------------------------------------------------- 20-10
Clear aperture: -------------------------------------------------- Central 90%
AR coating: -------------------------------------------------- <0.2% @wavelength

 Wavelength Range(nm)   < 400 532-632.8 780-980 1064 >1310
 Retardation Tolerance   <λ/100 <λ/200 <λ/300 <λ/400 <λ/500

Holder: refer to <<Holers for waveplates>>

Standard wavelength:  266nm, 355nm, 532nm, 632.8nm, 780nm, 808nm, 850nm, 980nm,1064nm, 1310nm, 1480nm, 1550nm

Quarter Waveplates

P/N #

Half Waveplates

P/N #

Diameter (mm)
Price/pc in US$ for different pcs range
qty<=5
5<qty<=10
10<qty<=20
qty>20
WPL210Q
WPL210H
10
$35
$29
$27-$17
RFQ
WPL212Q
WPL212H
12.7
$39
$33
$31-$21
RFQ
WPL215Q
WPL215H
15
$45
$39
$37-$27
RFQ
WPL220Q
WPL220H
20
$49
$42
$40-$30
RFQ
WPL225Q
WPL225H
25.4
$55
$49
$47-$35
RFQ
WPL230Q
WPL230H
30
$69
$59
$59
RFQ
Note: "RFQ"satands for "Request For Quoting"

Call for OEM quantity pricing

A wide variety of custom zero waveplates are available, please contact us with your custom requirement.

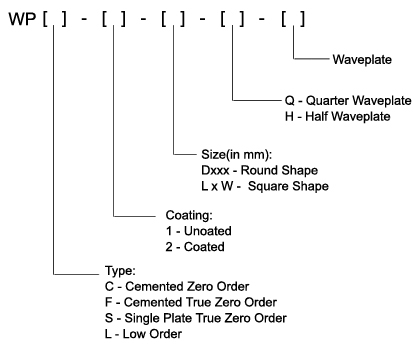

Ordering Information
1. Standard size products listed in above table
P/N# - wavelength
For Example: WPS210Q - 1550
2. Non-standard size products

 Example:
WPL 1- D17.5 - Q - 632.8
Low Order, Dia17.5mm, Quarter, 632.8nm Waveplate, Uncoated
WPL 2 - 15x10 - H - 808
Low Order, 15x10 mm, Half, 808nm Waveplate, Coated
