Dual Wavelengths Waveplate

Dual Wavelengths Waveplate

Dual wavelength waveplate is a multiple waveplate that provide a specitfic retardance at two different wavelengths, it's particularly useful when used in conjunction with other polarization sensitive components to separate coaxial laser beams of different wavelength.

Specifications:

Material: -----------------------------------------------Optical Grade Crystal Quartz
Dimension tolerance: -----------------------------+0.0, -0.2
Wavefront distortion: --------------------------------l /8@633nm
Retardation tolerance: -----------------------------l /300
Parallelism: -----------------------------------------<3 arc second (General),1 arc second (High Precision)
 Surface quality: --------------------------------------20-10
Clear aperture: ---------------------------------------Central 90%
AR coating: -----------------------------------------<0.2%@ wavelength
Damage threshold: --------------------------------500MW/cm2 in 5ns pulse
Holder: refer to <<Holers for waveplates>>

Standard Products:

Wavplate P/N#
Diameter (mm)
Phase Retardation
Price/pc in US$ for different pcs range
qty<=5
5<qty<=10
10<qty<=20
qty>20
WPD2121
12.7
λ@1064nm+λ/2@532nm
$56
$46
$35
RFQ
WPD2122
12.7
λ/2@1064nm+λ@532nm
$56
$46
$35
RFQ
WPD2151
15
λ@1064nm+λ/2@532nm
$63
$53
$42
RFQ
WPD2152
15
λ/2@1064nm+λ@532nm
$63
$53
$42
RFQ
WPD2201
20
λ@1064nm+λ/2@532nm
$69
$59
$49
RFQ
WPD2202
20
λ/2@1064nm+λ@532nm
$69
$59
$49
RFQ
WPD2251
25.4
λ@1064nm+λ/2@532nm
$84
$69
RFQ
RFQ
WPD2252
25.4
λ/2@1064nm+λ@532nm
$84
$69
RFQ
RFQ

Note:"RFQ"satands for "Request For Quoting"

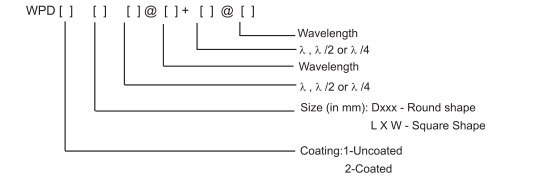

Ordering Information for Non-Standard Dual Wavelength Waveplates



Example: WPD 2-D16 -λ/2@1064+λ/4@532



   PDF to download
